技術規范
公稱壓力：PN1.6MPa
工作介質：水、非腐蝕性液體、飽和蒸汽(≤0.6MPa)
工作溫度：-20℃≤t≤150℃
管螺紋標準：符合ISO228標準

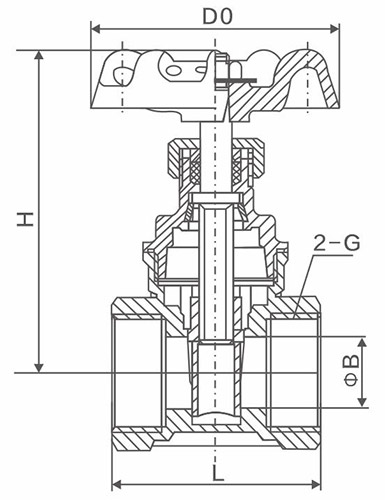

主要外形連接尺寸
|
DN(mm) |
NPS(in) |
L |
ΦB |
H |
D0 |
2-G |
|
15 |
1/2 |
43 |
12.7 |
71 |
54 |
1/2 |
|
20 |
3/4 |
46 |
16 |
76 |
54 |
3/4 |
|
25 |
1 |
49 |
20 |
86 |
60 |
1 |
|
32 |
11/4 |
52 |
26 |
99 |
68 |
11/4 |
|
40 |
11/2 |
56.5 |
32 |
109.5 |
72 |
11/2 |
|
50 |
2 |
64 |
43 |
130.5 |
80 |
2 |
|
65 |
21/2 |
80 |
52 |
160 |
100 |
21/2 |
|
80 |
3 |
83 |
63.5 |
486.5 |
110 |
3 |
|
100 |
4 |
101.5 |
84 |
227.5 |
125 |
4 |
