主要技術參數
|
壓力等級 |
1.0MPa |
1.6MPa |
|
|
測試等級 |
強度 |
1.5MPa |
2.4MPa |
|
密封 |
1.1MPa |
1.76MPa |
|
|
溫度 |
-10℃~80℃ |
||
|
介質 |
清水 |
||
|

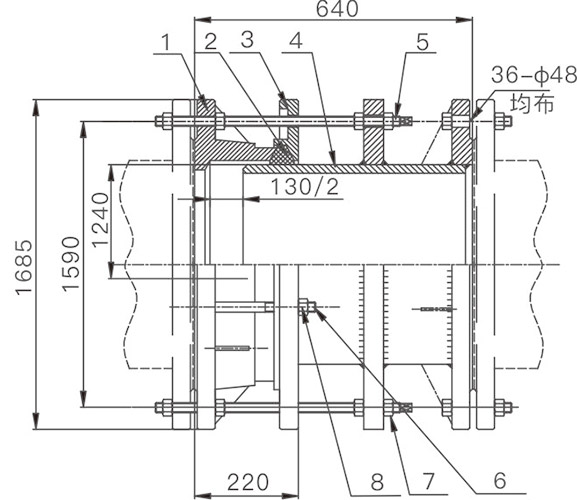

DN |
DW |
D |
K |
L |
δ |
no-do |
C1 |
C2 |
n1-Th*S |
n1-Th*S3 |
n-Th |
|
400 |
426 |
580 |
525 |
400 |
32.5 |
16-Φ30 |
28 |
38 |
4-M20*145 |
4-M20*280 |
16-M20 |
|
500 |
480 |
640 |
585 |
400 |
32.5 |
20-Φ30 |
30 |
42 |
5-M20*145 |
5-M20*280 |
20-M20 |
|
450 |
530 |
715 |
650 |
400 |
32.5 |
20-Φ33 |
32 |
46 |
5-M20*145 |
5-M20*280 |
20-M20 |
|
600 |
630 |
840 |
770 |
400 |
32.5 |
20-Φ36 |
36 |
54 |
5-M20*145 |
5-M20*280 |
20-M20 |
|
700 |
720 |
910 |
840 |
400 |
32.5 |
24-Φ36 |
40 |
40 |
6-M20*145 |
6-M20*280 |
24-M20 |
|
800 |
820 |
1025 |
950 |
600 |
65 |
24-Φ39 |
43 |
42 |
6-M24*240 |
6-M24*460 |
24-M24 |
|
900 |
920 |
1125 |
1050 |
600 |
65 |
28-Φ39 |
47 |
44 |
7-M24*240 |
7-M24*460 |
28-M24 |
|
1000 |
1202 |
1225 |
1170 |
600 |
65 |
28-Φ39 |
50 |
46 |
7-M24*240 |
7-M24*460 |
28-M24 |
|
1200 |
1220 |
1485 |
1390 |
600 |
65 |
32-Φ48 |
57 |
52 |
8-M24*240 |
8-M24*460 |
32-M24 |
|
1400 |
1420 |
1685 |
1590 |
640 |
65 |
36-Φ48 |
60 |
58 |
9-M24*240 |
9-M24*460 |
36-M24 |
|
1600 |
1620 |
1930 |
1820 |
640 |
65 |
40-Φ55 |
65 |
64 |
10-M24*240 |
10-M24*460 |
40-M27 |
|
1800 |
1820 |
2130 |
2020 |
640 |
65 |
44-Φ55 |
70 |
68 |
11-M24*240 |
11-M24*460 |
44-M27 |
